SolarKing lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles when compared to lead acid batteries.
Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and an in built battery management system for safety protection.
If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system as the built-in battery management system with do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will be much quicker.
This model SolarKing lithium battery use’s Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.

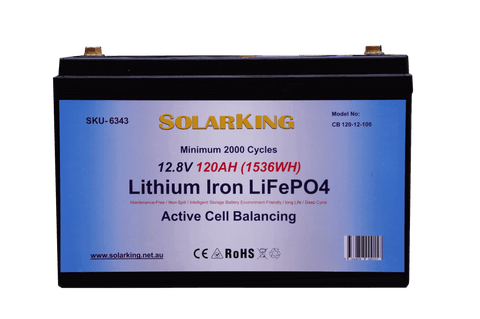

This 120AH battery is in the same small case size as the N-70 lead acid case
Features:
- 120AH Lithium Iron
- 100A BMS
- Compact size case
- 2000+Cycles
- Built in advanced BMS with low voltage re-start
- Active cell balancing
- Lightweight
- Can be connected in series or parallel
- Equivalent to 3 or 4 120AH deep cycle lead acid batteries
- CE, EMC, RCM, UN 38.3
- Note: This battery can’t be used to start motor vehicles
Technical Specifications:
- Dimensions 334x175x219mm
- Chemical: Lithium Iron LiFePo4
- Cell Type: Prismatic
- Product Weight: 12kgs
- Operating Temperature Range: -20°C ~ +60°C
- Voltage 12.8VDC
- Amperage 120AH
- Max Continuous Current 100A
- Max 3 Second Pulse 250A
- Min Charge Current <1A
- Nominal Charge Current 30A
- Max Charge Current 60A
- Bulk Charge Voltage 14.6V
- Float Charge Voltage 13.6V
- Recommended Charge Rate: 30A
- Cell Balancing: 5AH charge & discharge
- Cycles @ 100% DOD 2000 Cycles
- Cycles@ 80% DOD 3000 Cycles
- Cycles@ 50% DOD 3500 Cycles
- Cycles@ 30% DOD 8000 Cycles
- Low Voltage cut out: 10.0VDC
- Maximum charge voltage: 15.2V
- Maximum In-series voltage: 30.4V
- BMS Reconnect: Automatic
- BMS Low Voltage Restart: <1.0V
- Terminal T8
- Certifications: CE, EMC, RCM, UN 38.3
Packages:
- 1x CB-120-12-100 Lithium Battery
