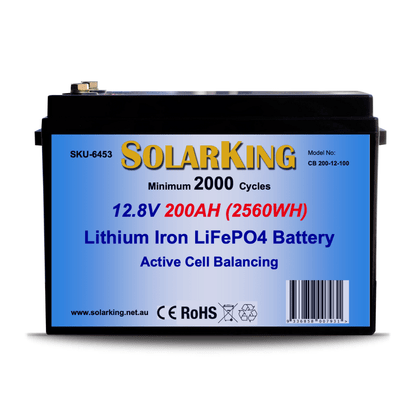

SolarKing lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles compared to lead acid batteries.
Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and a built-in battery management system for safety protection.
If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system as the built-in battery management system with do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will me much quicker.
This model SolarKing lithium battery use’s Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.
Features:
- 200AH Lithium Iron
- 2000+Cycles
- Built in advanced BMS with Dynamic cell balancing
- Lightweight
- Can be connected in series or parallel
- Equivalent to 3 or 4 150AH deep cycle lead acid batteries
- Note: This battery can’t be used to start motor vehicles
Specifications:
- Dimensions 365x185x245mm
- Chemical: Lithium Iron LiFePo4
- Product Weight: 22.0kgs
- Operating Temperature Range: -20°C ~ +60°C
- Voltage 12.8VDC
- Amperage 200AH
- Max Continuous Current 100A
- Max 10 Second Pulse 150A
- Min Charge Current 2A
- Nominal Charge Current 30A
- Max Charge Current 100A
- Max Charge Voltage 14.8V
- Cell Balancing: 5AH Nominal (8AH Peak) charge & discharge
- Cycles @ 100% DOD 2000 Cycles
- Cycles@ 80% DOD 3000 Cycles
- Cycles@ 50% DOD 3500 Cycles
- Cycles@ 30% DOD 8000 Cycles
- Low Voltage cut out: 10.0VDC
- Maximum In-series voltage: 30.4V
- Terminal :T10
- IP Rating: IP65
Package Includes:
- 1x CB-200-12-100 Lithium Battery
