SD-2430S Solar Regulator

SD-2430S Solar Regulator

No reviews yet Write a Review
$60.00
SKU:
6606
Shipping:
$15.00 (Fixed Shipping Cost)

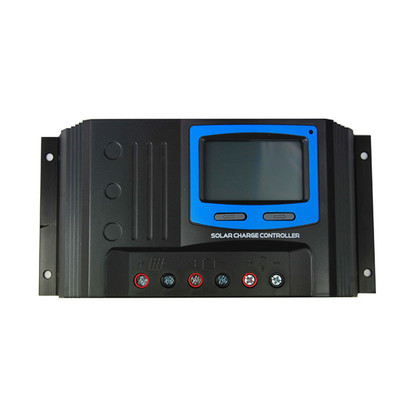

Heavy duty SolarKing Solar 30AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.

Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.

Features:

  • 30 Amp Maximum Current
  • 12/24VDC Auto Select
  • USB Charging Socket
  • Adjustable Load Timer Output
  • Large Heat Sink
  • Charge Status Indicator
  • Under and Over Voltage Indicators
  • Load on/off Selectable
  • LCD Display
  • Large Terminals for large cables
  • Reverse Polarity Protection
  • PWM 3 Stage Charging
  • 2 Hour Boost Charge when under voltage
  • Over Current Protection
  • Reverse Polarity Protection

Specifications:

  • Dimensions: 199x95x43mm
  • Mounting holes: 189x70mm
  • Weight: 410grams
  • Terminal Size: 16mm2
  • Enclosure Rating: IP32
  • Temperature Range: -20°C~+55°C
  • Voltage Range: 12/24V Auto Selectable
  • Standby Current Drain: 10mA
  • Maximum Current: 30AMP
  • Maximum Input Voltage: 55V
  • Overload Protection: 30sec restart

Package Includes:

  • 1x Solar Regulator
  • 1x Instructions
  • 1x Gift Box

Downloads:
