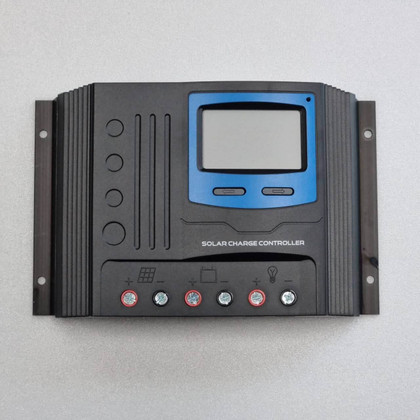

Heavy duty SolarKing Solar PWM 50AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.
Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.
The solar regulator suits both LiFePO4 and SLA/AGM Batteries.
Features:
- Suits Lithium LiFePO4 Profile
- 50 Amp Maximum Current
- PWM
- 12/24VDC Auto Select
- Adjustable Load Timer
- Large Heat Sink
- Charge Status Indicator
- Under and Over Voltage Indicators
- Load on/off Selectable
- LCD Display
- Large Terminals for large cables (25mm2)
- Reverse Polarity Protection
- PWM 3 Stage Charging
- 2 Hour Boost Charge when under voltage
- Over Current Protection
- Note No USB charger outlets
Technical Specifications:
- Dimensions: 200x127x50mm
- Max Charge Current: 50A
- Output Voltage: 12/24V (Auto Select)
- Weather Rating: IP32
- Operating Temperature Range: -20°C ~ +55°C
- Battery Types: LiFePO4, Lithium Ion, SLA, GEL, Flooded
- Grounding: Common Negative
- Low Voltage Disconnect: 11.0V Default (9V to 12V adjustable)
- Low Voltage Reconnect: 12.6V Default (11V to 13.5V adjustable)
- Float Voltage: 13.8V Default (13V to 15V adjustable)
- Boost Voltage: 14.4V Default (13V to 17V adjustable)
- Charge Type: PWM
- Self-Consumption: <10mA
Packages:
1x SK55 Reg
1x instructions
1x Screw mounting pack
