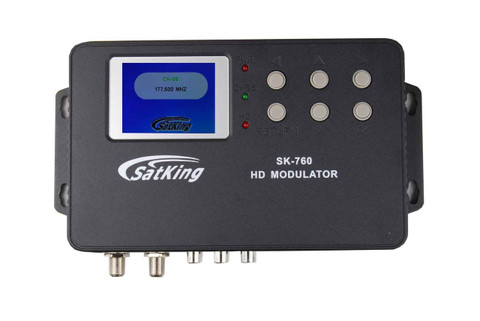

SatKing SK-760 Single Input HD Modulator

SatKing SK-760 Single Input HD Modulator

No reviews yet Write a Review
$459.00
SKU:
2006
Shipping:
$15.00 (Fixed Shipping Cost)

This single input high definition MPEG-4 RF modulator is fully featured with IR return path and HDM loop through. Boasting a large LED display with full control of all functions via the front panel keys. The unit is simple to use and pre-set for use in Australia. Parameters such as LCN, Channel name and network ID are all adjustable. The unit is perfect for distributing any high definition source around hotels, clubs and homes.

Features:

  • Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 (H.264) DVB-T COFDM TV channels
  • Selectable input either HDMI or CVBS
  • Compatible input resolutions 576i/720P/1080i/1080P
  • Maximum 1080P Output
  • HDMI input-with HDMI loop through for local connectivity
  • RF Loop Through
  • Full function front LED display menu control
  • Fully adjustable RF output
  • Aluminium Case
  • Compact design
  • Adjustable channel name, number and Network name
  • Silent operation, no fan

Technical Specifications:

Input

  • Channels: Single
  • Source: HDMI + CVBS
  • HDMI Resolution: 576i, 720p, 1080i, 1080p

RF Output

  • Frequency: 50-860MHz
  • MER: 35dB
  • Output Level: 70-100dBuV

Modulation

  • tandard: DVBT
  • Bandwidth: 6,7,8 MHz
  • Constellation: QPSK, 16QAM, 64QAM
  • Guard Interval: 1/4, 1/8, 1/16, 1/32
  • Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
  • Carrier: 2K, 8K

Compression

  • Video: MPEG-4 AVC, H.264

Power

  • Plug Pack 240VAC/12VDC 1.5A
  • Connections: HDMI IN x1, HDMI Out x1, CVBS in x1 RF In x1, RF Out x1, IR x1 2.1mm DC Jack x1, Mini USB x1

Physical

  • Dimensions: 210x130x40mm
  • Weight 500g
  • Temperature Range: 0-45°C



Packages:

  • 1x SK-760
  • 1x Power Pack
  • 1x USB cable
  • 1x Instruction Disk
