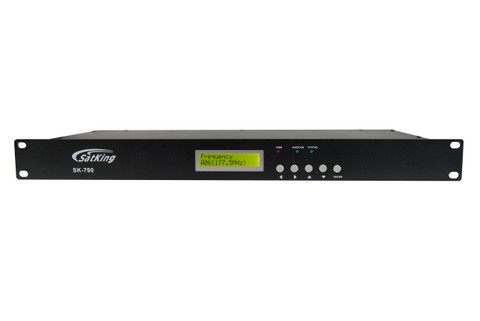

SK-790 Quad Input HD Modulator

SK-790 Quad Input HD Modulator

No reviews yet Write a Review
$1,649.00
SKU:
2008
Shipping:
Free Shipping

This quad input high definition MPEG-4 RF modulator is a fully featured network controllable modulator. The unit has 4 seperate HDMI inputs that are multiplexed into one 7MHz carrier. You can also either let the unit define the channel name, number and frequency or you can program your prefered settings. Simple to set up the unit comes pre-set for use in Australia. Perfect for use in hotels, clubs, homes and security.

Features:

  • 4 HDMI Inputs
  • MPEG-4 H.264 High Definition
  • 1080P
  • Fully Agile
  • Adjustable Output Level 90-105dBuV
  • MER 36dB
  • Programmable Channel, Network Names & LCN
  • Front Panel Controls & Web interface
  • 19" Rack Mountable
  • HDCP Supported

Specifications:

  • Width: 480mm
  • Height: 45mm
  • Depth: 210mm
  • Weight: 2kgs
  • Output Connections: RF, LAN
  • Input Connections: 4x HDMI
  • Loop Through Capability: No
  • IR Capability: No
  • Video Input: HDMI
  • Power: 240VAC mode
  • Output Channels: 6-69
  • Output Connector: F Type
  • Output Level: 90-105 dBuV
  • Carrier: 2K,8K
  • MER: 36dB
  • Video Resolution: 1080p Max

Package Includes:

  • 1x SK-790 Digital Modulator
  • 1x Power Cable
  • 1x instruction Disk

Product Resources:

 User Manual
 Product Brochure
